A Comprehensive Guide to Flexible Circuit Termination Methods

Flexible circuits have revolutionized modern electronics with their lightweight, bendable properties that enable unprecedented design flexibility. However, the choice of termination technology critically impacts both reliability and service life. This guide examines three primary termination methods—Zero Insertion Force (ZIF) Connectors, Unsupported Flexible Finger Structures, and Crimp-style Connectors—while highlighting the essential role of stiffeners in ensuring robust interconnection.

1. Connection Method Diversity for Flexible Circuits

Flexible circuits support various connector types, including standard through-hole/SMT connectors, circular/D-sub connectors, and pin headers. However, due to the inherent physical properties of flexible substrates, stiffener support is essential in connector areas to mitigate stress concentration and prevent conductor breakage or delamination.

2. ZIF Connectors: High Precision and Reliable Performance

ZIF connectors employ mechanical latching mechanisms to secure flexible circuits, providing stable connections without insertion/removal force—ideal for frequently connected applications.

Key Benefits:

• Extended Durability: Significantly reduces mechanical stress on copper traces

• Space-Saving Design: No mating connector required, optimizing layout and cost

• User-Friendly Operation: Perfect for test interfaces and modular systems

Design Guidelines:

• Thickness Management: Use polyimide stiffeners to maintain termination area thickness at 0.012" ± 0.002"

• Precision Manufacturing: Achieve ±0.0002" outline tolerance with laser cutting

• Surface Protection: Specify durable plating for high-cycle applications


3. Unsupported Flexible Fingers: Maximum Customization Potential

This innovative approach uses exposed "floating" conductors for direct interconnection, delivering ultimate design freedom for specialized layouts.

Primary Advantages:

• Full Customization: Adaptable to various pitches, lengths, and configurations

• Dual-Sided Access: Enables interconnection from both surfaces

• Component Reduction: Lowers BOM cost and simplifies assembly

Technical Requirements:

• Enhanced Conductors: 0.010" copper thickness in finger areas for mechanical robustness

• Laser Processing: Precision ablation creates three-sided floating structures

• Protective Measures: Temporary tie bars prevent damage during assembly

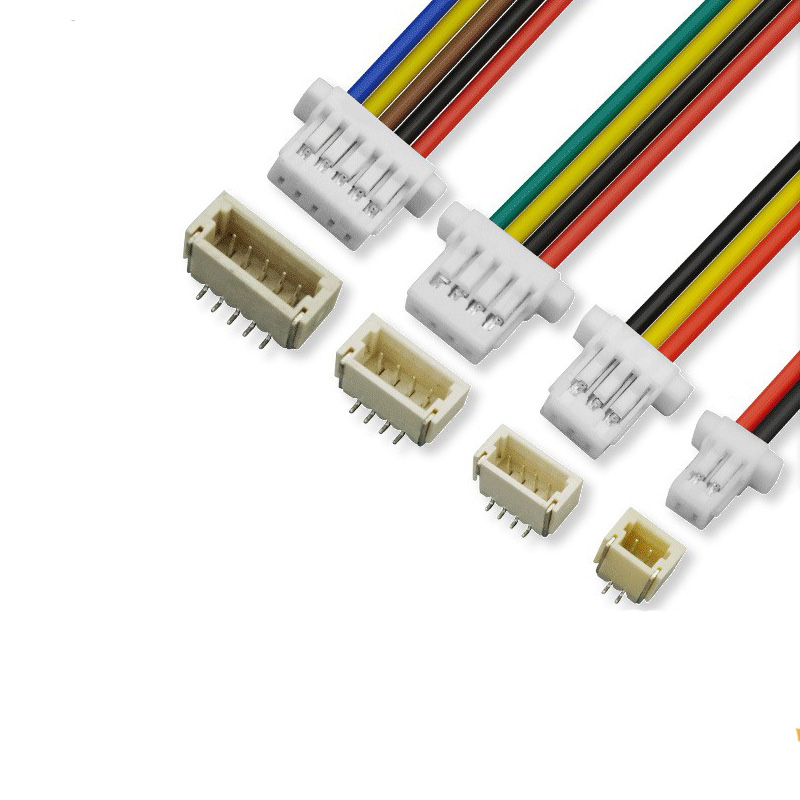

4. Crimp-Style Connectors: Economical and Robust Solution

Crimp technology establishes reliable connections through mechanical piercing, offering excellent value for high-volume production.

Selection Advantages:

• Cost Efficiency: Ideal for budget-conscious, high-volume projects

• Mechanical Strength: Superior resistance to stress and vibration

• Broad Compatibility: Standardized pitches suit most applications

Implementation Notes:

• Protective Housings: Centerline housings provide additional support

• Standard Designs: Readily available solutions for common scenarios

5. Stiffener Design: Ensuring Termination Reliability

Proper stiffener application is fundamental to long-term performance across all termination methods.

Design Best Practices:

• Material Compatibility: Select polyimide or FR4 matching circuit thermal properties

• Stress Management: Ensure adequate stiffener-coverlay overlap

• Flexibility Maintenance: Preserve circuit bending capability outside stiffened areas

6. Technical Comparison & Selection Guide

Method	Best For	Advantages	Considerations
ZIF Connectors	High-precision applications Frequent mating cycles	Minimal insertion force High reliability Space efficient	Tight tolerance requirements Potential higher cost
Flexible Fingers	Highly customized layouts Space-constrained designs	Maximum design freedom Dual-side access No connector needed	Higher complexity Specialized manufacturing
Crimp Connectors	Cost-sensitive projects High-volume production	Economic solution Proven reliability Standardized	Limited customization Tooling investment
